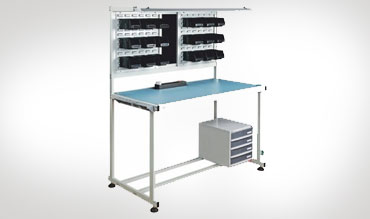

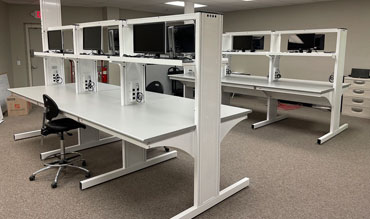

ESD Safe Work-station

Specifications

• ESD Workstation AWS 12060 SP: Table Top Size : 1200mm (W) X 600mm (D) over all height 1500mm

• ESD Workstation AWS 12060: Table Top Size : 1200mm (W) X 600mm (D) over all height 1800mm

ESD Safe Work-Station

ESD Workstation

• Size: 2000MM X 1200MM X 2000MM

• Material: MS Powder coated

• Height Adjuster

• LED Tubes with reflector

• Two Socket for each operator

• Display Pin Board and work instruction

• Size and design customization available

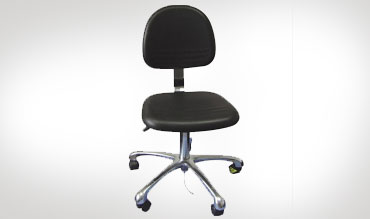

ESD Chairs

Chrome Base , PU Arms , push back mechanism , Anti Static Fabric ( Black leatherite ) ,Chrome Gas Lift with Drag Chain for Grounding , Grounding wire from seat to back , Chromium Plated Back Patta to connect seat & Back , normal wheels, Available in following models-

• CLB – 296 : 18" x 18" seat , 16" x 12" Back,

• CHB – 295 : 18" x 18" seat , 18" x 18" Back,

• CLB – 297 : 18" x 18" seat , 16" x 12" Back,

• CHB - 298 :18" x 18" seat , 18" x 18" Back,

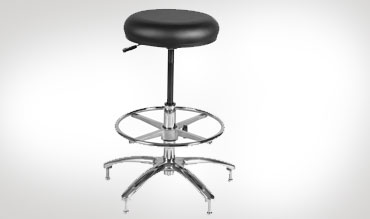

ESD Stool

• Chrome Base with Plastic Wheel/p>

• Ht Chrome Gas Lift

• 15" Ply Seat with Cushion and black antistatic Leatherite

• Chrome Foot Ring for big height

• Drag Chain for Grounding

• Customization available against order

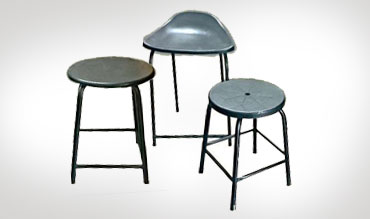

ESD Stool (Other Model )

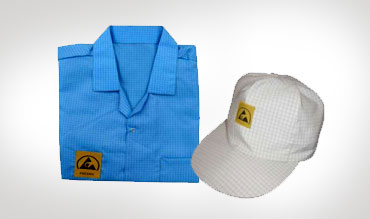

Antistatic Apron & Cap

• Surface Resistivity: 10^8 -10^9 Ohm/Square

• Material- 98% Fiber & 2% Conductive Fiber

• Colour- Blue, White, Pink, Yellow, Green and Navy Blue

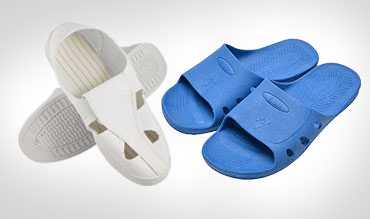

ESD Slipper & ESD Shoes

ESD Slipper

• Material: PVC

• Size: 38,40,42,44 and 46

• Colour: Blue / Black

• Surface Resistivity: 10^7 -10^9 Ohm/Square

ESD Shoe

• Material: PVC

• Size: 240, 250, 260, 270, 280 &290

• Colour: White

• Surface Resistivity: 10^7 -10^9 Ohm/Square

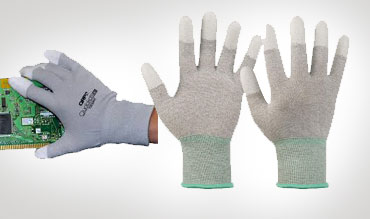

ESD Gloves

Polyurethane coated palm ESD gloves are manufactured from the dust-free fabricknitted with yarns containing nylon and copper and coated with polyurethane on theirpalm areas, and this helps workers avoid slipping from much sweat. Although they arecoated with polyurethane on their palm areas, they are well-ventilated. These gloveshelp to protect human body and the products from harmful static electricity thanks totheir function of controlling electricity. Therefore, these gloves are especially good forassembling semiconductors, the micro-process work, and handling the compact disks
Types of Gloves:-

• ESD Dotted Gloves

• ESD PU Coated Gloves

• ESD PU Coated Gloves

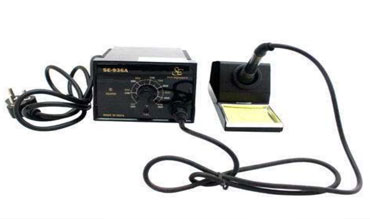

TEMP. CONTROLLED SOLDERING STATION SE-936A

Specifications:

• Temperature range: 200-480°C

• Input voltage: 190-270V AC

• Output voltage: 24V AC

• Max power: 60 Watt

• Heater type: Alumina ceramic A1321

• Bit 900M series

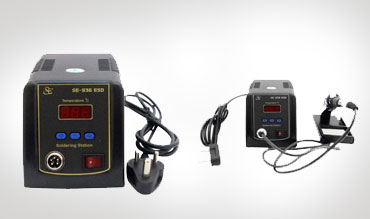

TEMP. CONTROLLED SOLDERING STATION SE-936ESD

Parameters:-

• Compact handle designed for longtime operation without causing fatigue.

• Accurate temperature display and setting.

• Separate design, giving me more flexibly in placement.

• Unique design of soldering iron stand for absorbing excessive melt TIN in the soldering tip without leaving the working table contaminated.

• Compatible for Leaded and Lead Free soldering.

• User Password Protection

Specifications:-

• Temperature range: 200-480°C

• Input voltage: 190-270V AC.

• Output voltage: 24V AC.

• Max power: 60 Watt.

• Heater type: Alumina ceramic A1321.

• Bit 900M series.

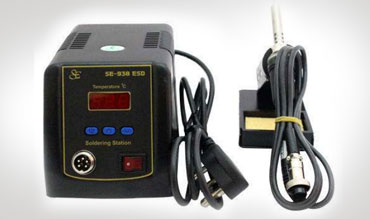

TEMP. CONTROLLED SOLDERING STATION SE-938ESD

PARAMETERS:

• Compact handle designed for longtime operation without causing fatigue

• Accurate temperature display and setting

• Separate design, giving me more flexibly in placement.

• Optional Soldering bit for convenient change

• Unique design of soldering iron stand for absorbing excessive melt TIN in the soldering tip without leaving the working table contaminated.

• Compatible for High temperature soldering.

SPECIFICATIONS:

• Temperature range: 200-500°C

• Input voltage: 190-270V AC

• Output voltage: 24V AC

• Max power: 90 Watt

• Heater type: Alumina ceramic Heater.

• Bit 901P series.

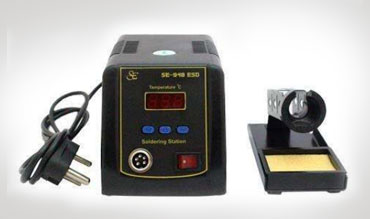

TEMP. CONTROLLED SOLDERING STATION SE-948ESD

PARAMETERS:-

• Compact handle designed for longtime operation without causing fatigue.

• Accurate temperature display and setting.

• Separate design, giving me more flexibly in placement.

• Optional Soldering bit for convenient change.

• Unique design of soldering iron stand for absorbing excessive melt TIN in the soldering tip without leaving the working table contaminated.

• Compatible for High temperature soldering.

SPECIFICATIONS:-

• Temperature range: 200-550°C

• Input voltage: 190-270V AC.

• Output voltage: 24V AC.

• Max power: 120 Watt.

• Heater type: Alumina ceramic Heater.

• Bit 901P series.

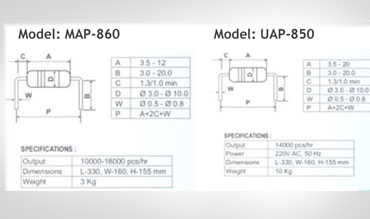

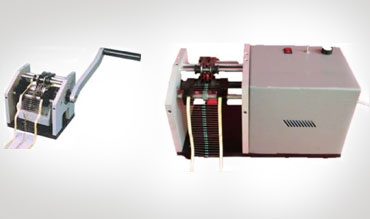

COMPONENT FORMING MACHINE- AXIAL

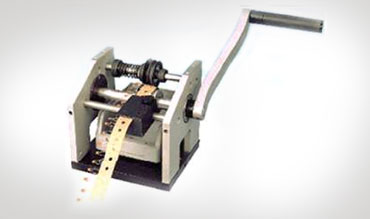

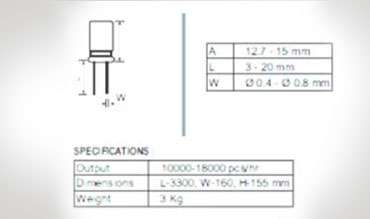

COMPONENT FORMING MACHINE- RADIAL MAP860R

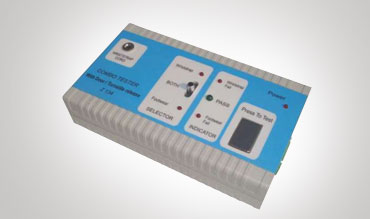

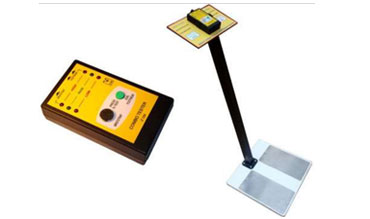

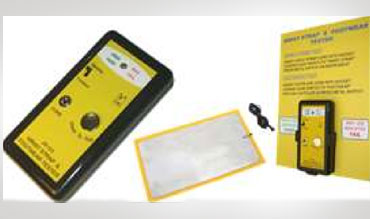

COMBO TESTER Z-124 WITH STAND

PRODUCT DESCRIPTION:

• COMBO TESTER is a combination Wriststrap & DUAL footwear tester which checks these parameters under actual realtime operating conditions. The footwear section gives a warning if either of the Footwear is defective.

Specifications:

• Pass Range : Wrist strap 0.75 to 10.0 meg ohm Footwear 0.75 to 35/100 meg ohm

• Actuation : By gently pressing respective buttons

• Separate design, giving me more flexibly in placement.

• Accuracy : + 10%

• Power requirement : 9 V DC battery.

• Low Battery : Orange - Warning less than 7 volts..

• Dimensions & Wt : (instrument) 125 x 75 x 29 mm 150 gms (stand) 430 x 400 x 950 mm ht. 6 Kgs

• Calibration : Recommended eve ry 12 months.

• Traceability : To national standards

• Warranty : 12 months

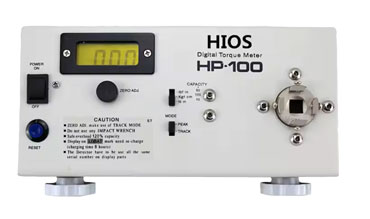

DIGITAL TORQUE METER HP-100

• Use for making torque settings on electric screwdrivers, checking torque of torque wrenches or measuring torque of various rotating units, etc.

• Measured data can be imported to a computer

• Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).

• With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).

• New product, HP-1 is ideal for measuring 10N･cm or smaller torque.

• Torque for both clockwise or counterclockwise can be measured.

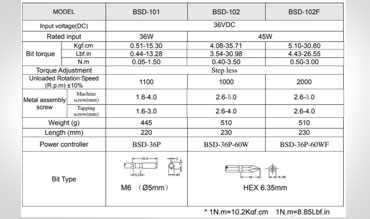

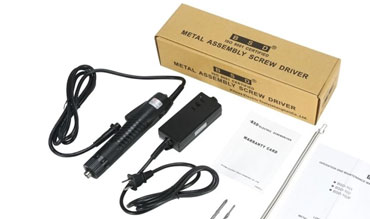

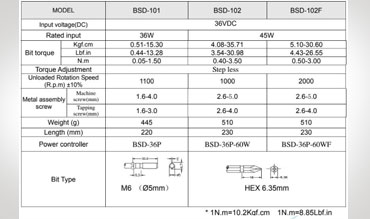

ELECTRICAL SCREW DRIVER BSD-101

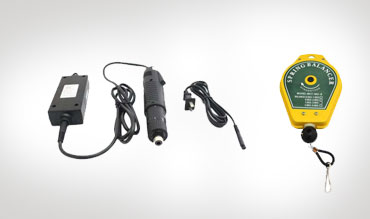

ELECTRICAL SCREW DRIVER BSD-102

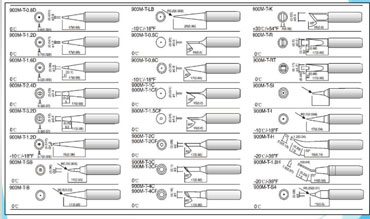

SOLDERING IRON BIT

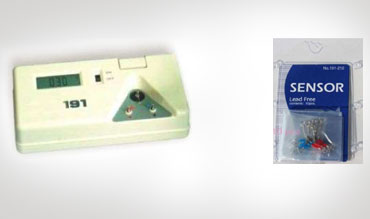

SOLDERING TIPS THERMOMETER

FEATURES:-

• Adopt CA sensors can precisely measure temperature of soldering iron tip, liquidcrystal digital display.

• Measure the inner temperature of other liquids and solids by replace K type TP-01temperature probe, easy to replace sensor

• Measure range: 0-600⁰C.

• Low voltage alarm display function.

• Compatible Sensor 191-212.

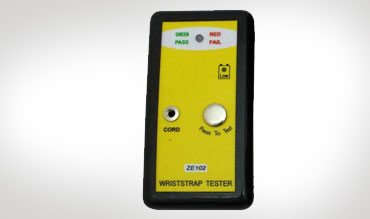

WRIST STRAP TESTER ZE-102

SPECIFICATIONS:

• Pass Band : 0.75 Megohms to 10 Megohms.

• Indications : Pass - Green LED Fail - RED LEDs (High & Low) Audible Alarm for Fail mode.

• Actuation : By Press to ON switch

• Accuracy : +10%

• Power supply : 9 V volts.

• Battery Dimensions : 135 x 70 x 25 mm.

• Weight : 100 gms.

• Calibration : Recommended every 12 months.

• Traceability : To national standards.

• Warranty : One year.

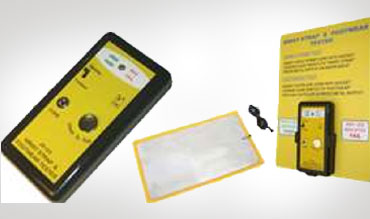

WRIST STRAP & FOOTWEAR TESTER ZE-103

SPECIFICATIONS:-

• Pass Range : Wrist strap 0.75 to 10.0 meg ohm.

• Footwear 0.75 to 35.0 meg ohm.

• Range selection : by Slide Switch.

• 10 meg ohms - Wrist Strap.

• 35 meg ohms - ESD Footwear / Heel & Toe strap.

• Indications : Dual colour LED: Pass - Green

• Fail - Red.

• Audible Alarm for Fail mode.

• Accuracy : + 10%.

• Power supply : 9 V DC battery.

• Low Battery : Warning less than 7 volts.

• Dimensions : 135 x 70 x 25.

• Weight : 150 grams.

• Calibration : Recommended every 12 months.

• Traceability : To national standards.

• Warranty : 12 months.

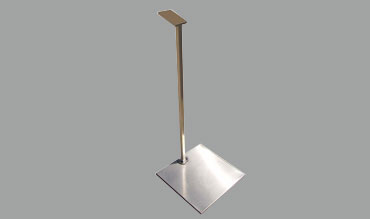

Static Discharge Stand

Specifications

• Material : Stainless steel & Block board

• Finish : Brushed effect

• Dimensions: Footplate 410 x 410 & 20mm

• Touch Plate 150 x 150mm

• Weight : 4.75 Kg

• Ht : 1000mm

• Decay Time : < 2 secs

• Resistance to Ground: 1Mohm

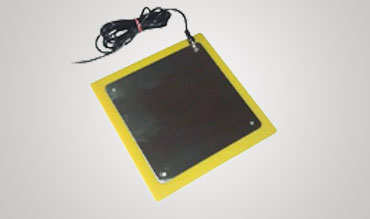

Static Discharge Phame Plate

Specifications

• Material : ESD mat on Acrylic backing

• Finish : Brushed effect

• Dimensions: Touch Plate 1.00ft x 1.00ft

• Weight : 500 gms

• Decay Time : < 2 secs

• Resistance to Ground: 2.2Mohm

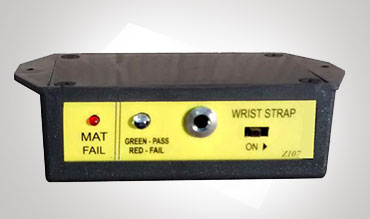

WRIST STRAP ONLINE MONITOR Z107

Specifications

• Pass Threshold: under 10 Megohms for Wrist Strap
  under 10 Megohms for MAT.

• Pass – Green LED
  Fail – Flashing Red LED for Wrist Strap
  Steady Red LED for MAT Audible Alarm for Fail mode

• Power supply : 6VDC 100ma

• Dimensions : 110 x 60 x 32 mm

• Weight : 75 gms

• Calibration : Recommended every 12 months

• Warranty : One year

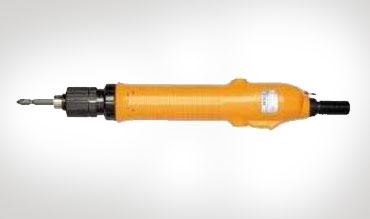

ELECTRICAL SCREW DRIVER BSD-6600P

Specifications

• Torque: 2-12kgf. Cm

• Unloaded rotation speed: 1, 000/700rpm

• Screw diameter

• a) Machine screw: 1.6 - 3.0mm

• b) Tapping screw: 1.6 - 2.6mm

• Weight: 480g

• Length: 230mm

• Suspension rack model: KH-3 (KH-3)

• Torque fixing ring model: KC-3

• BIT type:

• a) M3 ø 4mm

• b) M6 ø 5mm

• c) HEX 5mm

• d) HEX 6.35mm

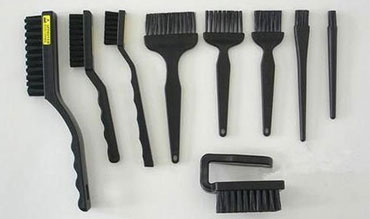

Conductive Brushes

• Bristles are made from conductive fibers mixed with natural hair

• Handles are made from static dissipative plastic

• Brush will not create a charge and will also discharge any potential static charge

• Brushes available in three bristle types: hard, semi-fine and fine

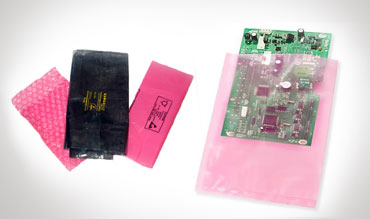

ESD Packing Materials

• Antistatic PP Pink Or any color Bag (Surface Resistance 109~1011Ohms)

• Antistatic Air Babble Bag (Surface Resistance 109~1011Ohms)

• Antistatic Static Shielding Bag (Surface Resistance 109~1010Ohms)

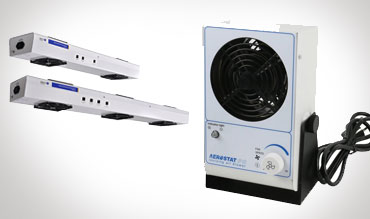

Ionizing Air Blower

• 5700 Advanced high frequency discharging Technology, Quick neutralization of static charge.

• With compact size & light weight.

• 5900L Three speed control fan for rapidly neutralization of static Charge.

• GS 4000 Ionizing Air Gun.

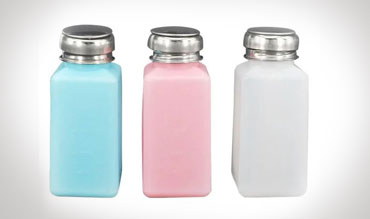

ESD Bottles

Specifications.

• Material: Stainless steel pump cap and HDPE bottle

• Surface resistance of bottle: 10^7-10^11 Ohm

• Type: Pump Sprayer

• Volume: 180ml

• Weight: 39gms

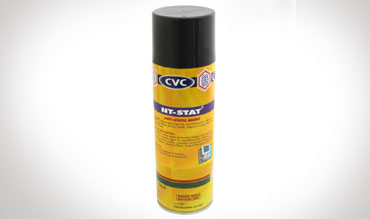

Anti-Static Spray

Features.

• Use to maintain the ESD property of ESD materials for running uses.

• Volume- 550ml

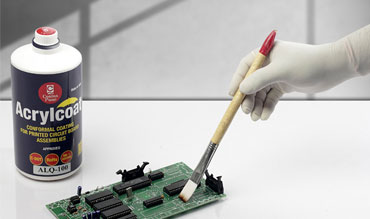

Conformal Coating

Features.

• Protection from high humidity, rusting, fungus, etc,.

• Provides transparent hard film coating on LED light and circuits.

• Does not affect luminosity of LED light.

• Protection against corrosion and thermal shock.

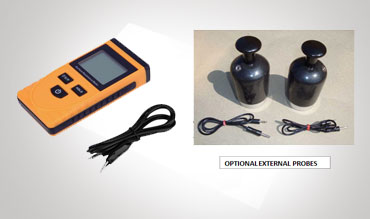

Digital Surface Resistivity Meter Z-2032

Specifications.

• Measurement Range : 10^3 to 10^12 ohms/sq, 0 – 50C

• Measurement accuracy : Resistance 10%, Temp +2C

• Indication : LCD backlit display

• Power supply : 9 Volt DC battery

• Battery condition : Indication On LCD display

• Dimensions in mm : 125 x 62 x 35

• Weight : 160 grams

• Calibration : Recommended every 12 months

• Traceability : To national standards

• Warranty : 12 months.

• Accessories included : 1 m Grounding Cord & Carrying case

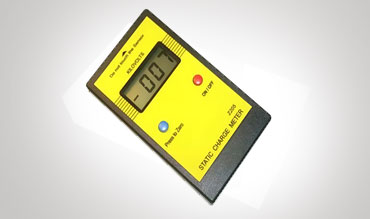

Static Charge Meter Z-205

Specifications.

• Indicating range : + 10 KV at 5cms from object.(20KV on request)

• Display : 3 1/2 digit LCD with polarity indication

• Resolution : LSB 10V

• Accuracy : +10% of Reading

• Test Actuation : Push On push Off switch

• Power Supply : 9 V battery

• Low battery : Warning at 7.0 V on display

• Dimensions in mm : 125 x 75 x 29

• Weight : 200 gms

• Calibration : Recommended once every 12 months.

• Traceability : To national standards

• Warranty : One year.

• Accessories : Carrying case

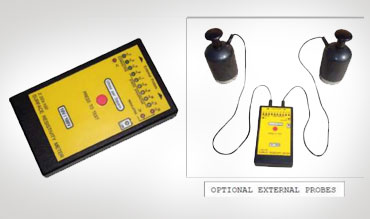

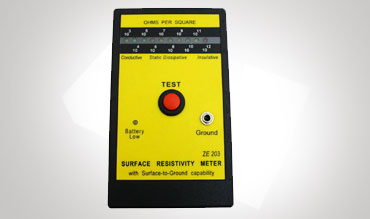

Surface Resistivity Meter ZE-203

Specifications.

• Measurement Range : 10^3 to 10^12 ohms/sq

• Measurement accuracy : half decade

• Resolution : One decade

• Excitation voltage : 9 V

• Indication : Visual by LEDs

• Test actuation : Press to ON Switch

• Power supply : 9 Volt DC battery

• Low battery : Warning at 7.5 V

• Dimensions in mm : 125 x 75 x 29

• Weight : 150 gms

• Calibration : Recommended every 12 months

• Traceability : To national standards

• Warranty : 12 months.

• Accessories included : 1 m Grounding Cord & Carrying case
